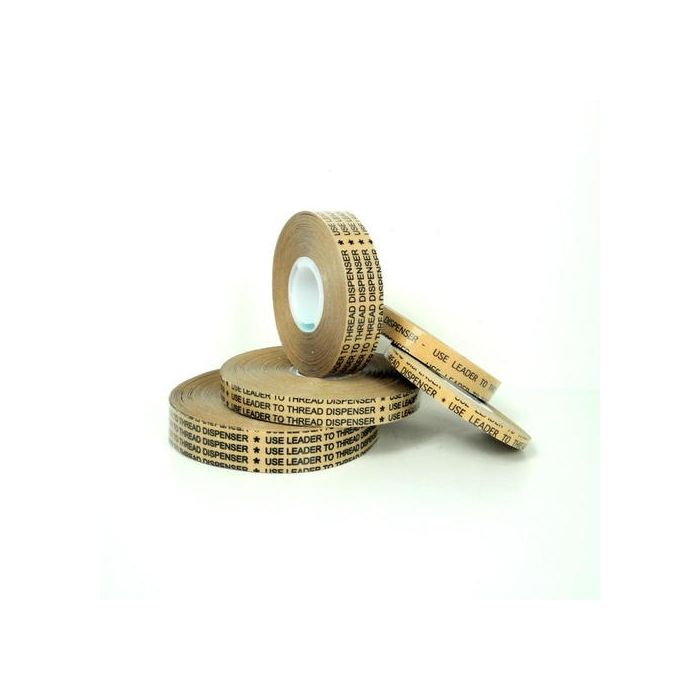

Heavy Duty ATG Tape 1/4"
HEAVY DUTY ATG TAPE - 1/4"(6mm) x 18yds
ID: 56750-0025-001-018 - 1 CASE: 144 UNIDS
A 4.7 mil (0.120mm) glass stabilized acrylic adhesive transfer tape with brown siliconized paper liner reverse wound on a 1" plastic core. Heavy Duty ATG Tape has a super quick tack, good shear and holding power, excellent for the more difficult bonding applications where more adhesive is needed and is specifically designed to be used in ATG (Adhesive Transfer Gun) dispensers. The ATG system automatically rewinds the tape's liner inside of the dispenser as the tape is applied (tape is dispensed without liner).
FEATURES/BENEFITS:
Glass stabilization allows for cleaner unwinding. Excellent adhesion to paper, most plastic films, metal foils, etc. Ultra-violet light has little or no effect on adhesive.
APPLICATIONS:
Used for mounting nameplates, picture framing, product assembly, design and packaging of prototypes, sealing envelopes, paper web splicing, and general mounting and holding.
PHYSICAL PROPERTIES:
|
Adhesive |
Glass Stabilized Modified Acrylic Adhesive |
|
Total Thickness |
4.7 mils (0.120 mm) |
|
Liner |
Brown Siliconized Paper |
|
Peel Adhesion to SST (1 min) |
77.7 oz/inch |
|
Peel Adhesion to SST (24 hrs) |
105.1 oz/inch |
|
Temperature Resistance |
-22°F to 230°F |
|
Available Widths |
1/4" (6mm), 1/2" (12mm) or 3/4" (19mm) |
|
Available Lengths |
18Yd (16.5M) or 36Yd (33M) |
STORAGE:
Tape should be stored in a cool, dry environment. Recommended storage conditions are
50% relative humidity and temperatures of 68°F to 86°F.
NOTE: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.
